Plane-3 : Projections-3 ( Japan )

Draw map in 100% size using etopo2, and shrink them to 80% by GraphicConverter. In this scale, difference between Corn projection and Orthographic projection is small.

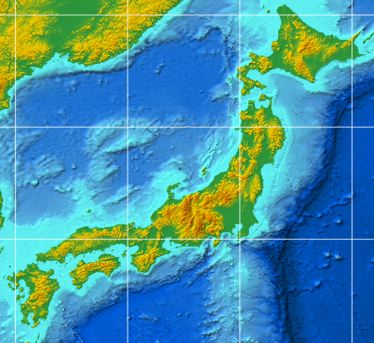

(1) Equidistant cylindrical ( projection in main window )

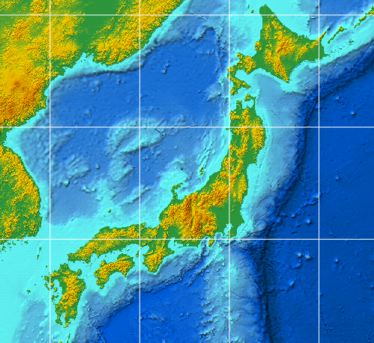

(2) Equidistant cylindrical ( Set the base latitude to 37 deg. )

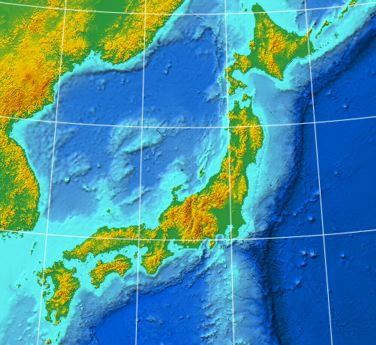

(3) Corn projection

(4) Orthographic projection
