Gallery

Plane-7 : Contour lines

Sample pictures of contour lines , supported from ver. 3.1.

(1) Peak of Mt. Fuji

　DEM : GSI's 10 meter mesh ( Volcano ). 500% extended. Contour line intervals are 5 meters.

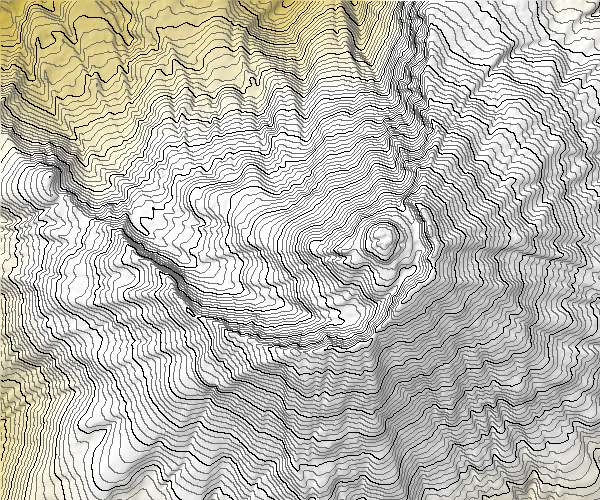

(2) Mt. Chokai in northern Japan

　DEM : GSI's 10 meter mesh ( Volcano ). 200% extended. Contour line intervals are 10 meters.

(3) Hawaii island in U.S.A.

DEM : USGS 3 seconds mesh. 200% extended. Contour line intervals are 20 meters.
